Understanding House Wiring Colors

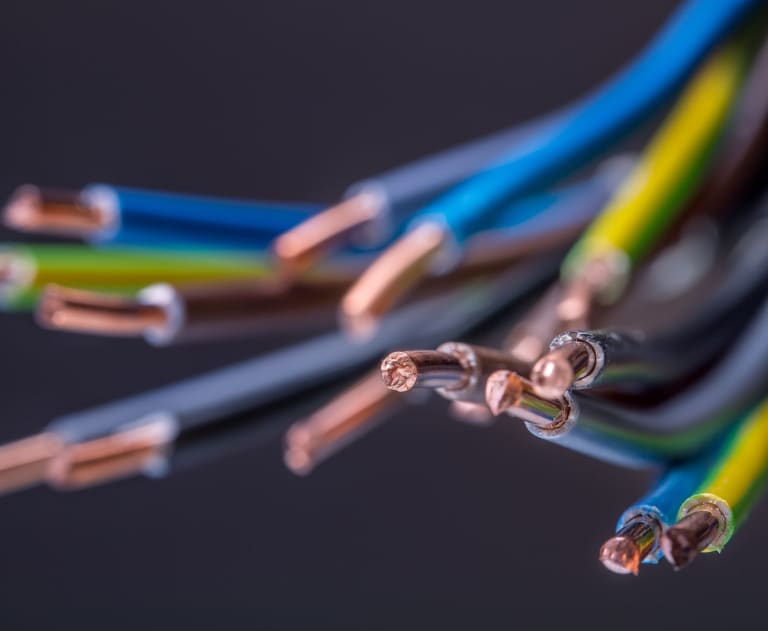

Electrical wires

Understanding House Wiring Colors

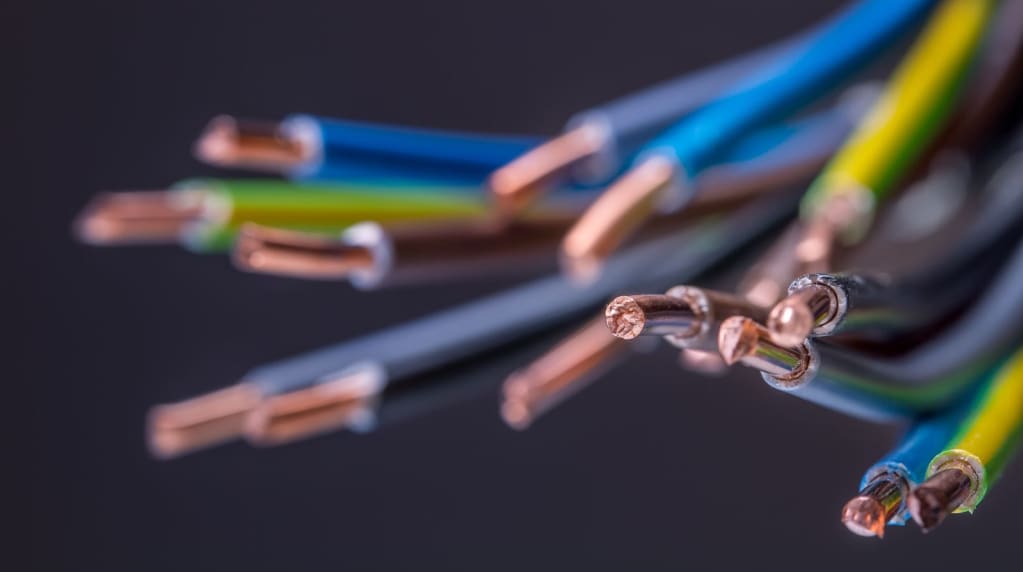

Electrical wires

House wiring colors may seem like a confusing rainbow of wires at first glance. However, each color serves a critical purpose in maintaining electrical safety and functionality. Knowing what house wiring colors represent might be very important, whether you’re troubleshooting a problem, upgrading your home’s wiring, or simply trying to understand how your electrical system works. Let’s break down the basics of house wiring colors and their significance.

1. The Importance of Wiring Color Codes

Wiring color codes are standardized to ensure safety and consistency in electrical installations. In the United States, the National Electrical Code (NEC) provides guidelines for wiring colors. These color codes help identify the function of each wire, reducing the risk of electrical accidents and making maintenance and troubleshooting easier.

2. Common House Wiring Colors and Their Functions

Here are the most common house wiring colors you’ll encounter and what they mean. Remember, you should always turn off the power before working with wires!

Black Wires

Black wires are used for hot wires, which carry electrical current from the power source to outlets, switches, and other devices. These wires are always live, so extreme caution is required when handling them.

Function: Power supply to devices and fixtures. Safety Tip: Always turn off the power before working with any wires, but black wires are ALWAYS live, so be very careful.

Red Wires

Red wires are also hot wires, often used as secondary hot wires in 220-volt circuits or for interconnecting smoke detectors.

Function: Secondary power supply or interconnection. Common Uses: Ceiling fans, hardwired smoke alarms, or three-way switch configurations.

White Wires

White wires are typically neutral wires, which carry current back to the electrical panel after it has powered a device or fixture. While neutral wires are not “hot,” they can still carry current and pose a risk if mishandled. Uninsulated copper wires are neutral, and grey wires may also be.

Function: Return path for electrical current. Safety Tip: Treat neutral wires as potentially live, especially in older homes.

Green Wires

Green wires (or bare copper wires) are ground wires. Grounding is essential for safety, providing a pathway for electricity to dissipate safely into the earth in the event of a fault.

Function: Safety and grounding. Common Uses: Ground connections in outlets, switches, and fixtures.

Blue and Yellow Wires

These colors are less common in residential wiring but can be used as hot wires in switch legs or for lighting circuits.

  • Blue Wires: Typically used for three- or four-way switch connections or control circuits.

  • Yellow Wires: Often used for switch legs or lighting circuits.

3. Wiring Color Standards for 220-Volt Circuits

In 220-volt circuits, the wiring color standards differ slightly. You’ll commonly find the following:

  • Black Wires: Primary hot wire.

  • Red Wires: Secondary hot wire.

  • White Wires: Neutral wire.

  • Green or Bare Copper Wires: Ground wire.

These circuits are often used for high-powered appliances like electric ranges, dryers, or HVAC systems.

4. Wiring Colors in Older Homes

Older homes may not adhere to modern color standards, which can make identifying wiring functions more challenging. You might encounter:

  • Cloth-Wrapped Wires: Often used before the 1960s, these wires lack clear color coding.

  • Non-Standard Colors: Some older systems used colors like gray or orange for neutral or hot wires.

Tip: If you live in an older home, we recommend having a licensed electrician like Thomas Edison Electric inspect your wiring for safety and code compliance. You should also strongly consider having a professional team upgrade your wiring for peace of mind.

5. Identifying and Testing Wires Safely

While wiring colors provide helpful guidelines, never assume that the color alone determines a wire’s function. Testing wires with a voltage tester is essential to confirm their role before handling.

Steps for Safe Testing:

  1. Turn off the power at the breaker panel.

  2. Use a voltage tester to check for current.

  3. Label wires for future reference.

6. Why Professional Installation Matters

Electrical work is complex and potentially hazardous. Improper handling of wires can result in electrical shock, fires, or system failures. A licensed electrician ensures that all wiring adheres to code and functions as intended. At Thomas Edison Electric, we specialize in identifying, installing, and troubleshooting house wiring safely and efficiently.

7. Upgrading and Maintaining Your Wiring System

If your home’s wiring system is outdated or showing signs of wear, it may be time for an upgrade. Look for these warning signs:

  • Frequent Circuit Breaker Trips: Indicates overloaded circuits.

  • Burning Smells or Discolored Outlets: Signs of overheating.

  • Flickering Lights: May result from loose connections.

Modernizing your wiring system not only improves safety but can also enhance energy efficiency and support new technologies.

Trust House Wiring Colors and Your Home to Thomas Edison Electric

Understanding house wiring colors is a crucial step in maintaining a safe and efficient electrical system. From black and red hot wires to white neutral wires and green ground wires, each color plays a unique role in powering your home.

When it comes to electrical work, trust the professionals at Thomas Edison Electric. Serving Pennsylvania, our licensed electricians ensure your wiring is up to code and functioning safely. Contact us today for all your electrical needs!
