Transformers play a crucial role in electrical systems, ensuring efficient voltage regulation and power distribution. They are used in residential, commercial, and industrial applications to safely transfer electrical energy between circuits. Understanding the different types of transformers is essential for electricians, engineers, and homeowners alike. Below, we explore the various types of transformers and their specific functions.

1. Step-Up and Step-Down Transformers

Step-up and step-down transformers are among the most commonly used types in electrical systems.

• Step-Up Transformer: Increases the voltage from the primary coil to the secondary coil, commonly used in power stations to transmit electricity over long distances with minimal energy loss.

• Step-Down Transformer: Reduces voltage to a safer level for use in homes and businesses. These transformers are essential for supplying electricity to residential areas.

2. Isolation Transformers

Isolation transformers are designed to provide electrical isolation between the primary and secondary windings. They enhance safety by preventing direct current (DC) interference and reducing electrical noise. These transformers are widely used in medical devices, industrial equipment, and sensitive electronic applications.

3. Autotransformers

Unlike conventional transformers, autotransformers have a single winding that acts as both the primary and secondary coil. They are more compact and efficient, making them ideal for applications that require minor voltage adjustments, such as voltage regulators and power transmission systems.

4. Toroidal Transformers

Toroidal transformers have a doughnut-shaped core that provides higher efficiency and lower electromagnetic interference (EMI) compared to traditional laminated transformers. They are commonly used in audio systems, medical equipment, and high-frequency applications due to their compact size and superior performance.

5. Instrument Transformers

Instrument transformers are specialized transformers designed for measuring voltage and current levels safely in electrical systems. They include:

• Current Transformers (CTs): Used to measure high electrical currents by reducing them to manageable levels for instruments and protective relays.

• Voltage Transformers (VTs) or Potential Transformers (PTs): Used to measure high voltage in power grids and ensure accurate readings for monitoring and control systems.

6. Oil-Filled and Dry-Type Transformers

Transformers are classified based on their cooling and insulation methods:

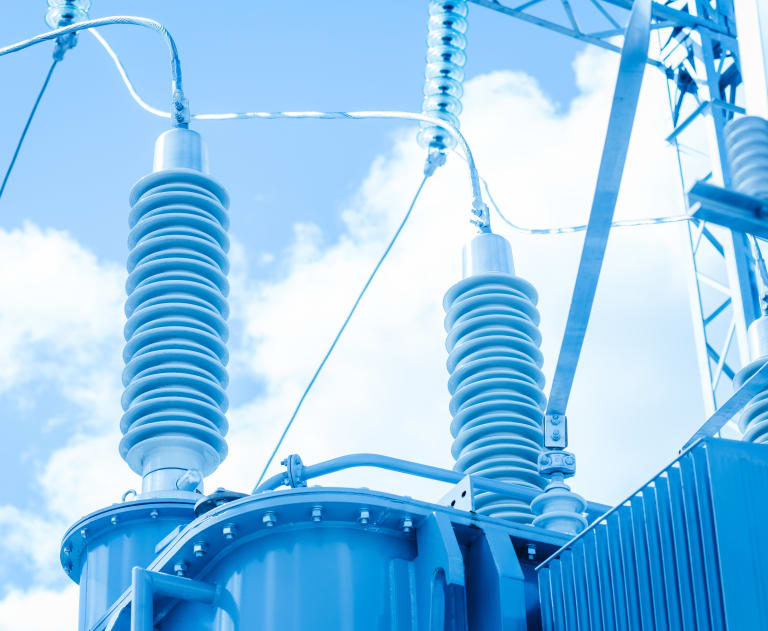

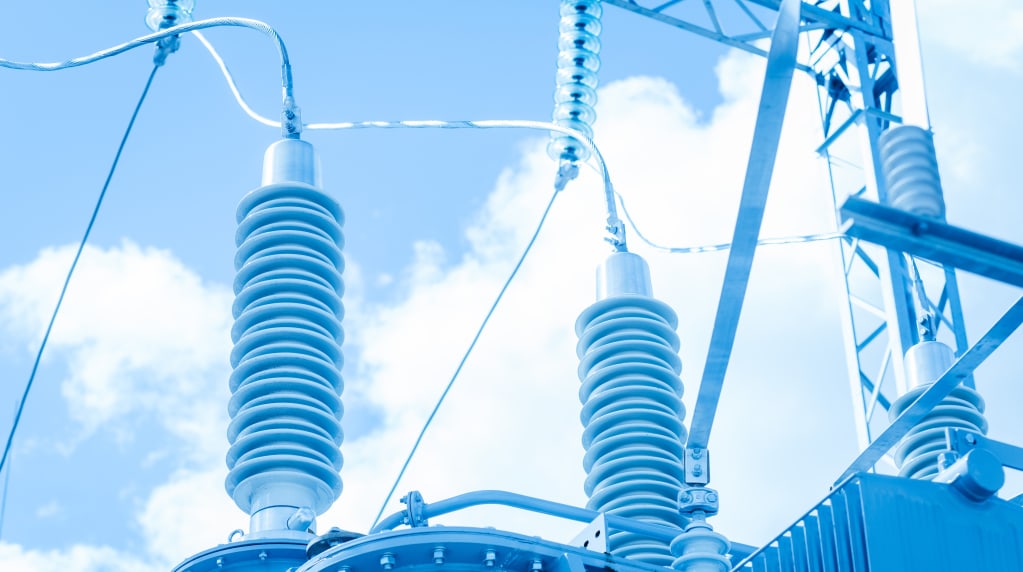

• Oil-Filled Transformers: Use insulating oil for cooling and insulation, commonly found in outdoor substations and high-power applications.

• Dry-Type Transformers: Use air or other non-liquid insulation materials, making them safer for indoor use and environmentally friendly applications.

7. Three-Phase and Single-Phase Transformers

• Three-Phase Transformers: Used in industrial and commercial power distribution systems, providing efficient energy transfer for high-power applications such as large motors.

• Single-Phase Transformers: Commonly used in residential settings to power household appliances and smaller electrical loads.

8. Control Transformers

Control transformers are made to provide a stable voltage supply to control circuits in electrical equipment. They are commonly used in industrial machinery, HVAC systems, and automation applications where reliable low-voltage power is necessary.

Transformers and Thomas Edison Electric

Understanding the different types of transformers is essential for selecting the right one for a specific application. Whether you need a step-up transformer for power transmission or a toroidal transformer for electronic devices, choosing the appropriate transformer ensures safety, efficiency, and reliability in electrical systems.

At Thomas Edison Electric, we specialize in transformer installation, maintenance, and repair across Pennsylvania. Our team of expert electricians can help you choose the right transformer for your needs, ensuring a safe and efficient electrical system. Contact us today to learn more about our professional services!
